商品の詳細:
お支払配送条件:
|
| 色: | 緑色 | 保証: | 24ヶ月 |
|---|---|---|---|
| 証明書: | CE&ISO | 溶接の標準: | DVS2207 |
| 溶接材料: | HDPE PP PVDF PPH | 名前: | バット・フュージョン溶接機 |
| 適用する: | 水 供給 | 材料: | 鉄鋼とアルミニウム |
| ブランド: | MM技術 | 溶接の範囲: | 630~1200MM |
| ハイライト: | Effecitve hdpe welding machines,1000mm hdpe welding machines,Water Supply hdpe welding machines |
||
Overview:
HDPE Butt Fusion Welding Machines, which usually used to weld thermoplastic pipes like PP and PE, consists of three parts:
Machine Chasis: The intergral frame features a quick and detachable structure, facilitating rapid maintenance and repair.
Heating Plate & Trimmer: Ergonomic operation handle designed in accordance with ergonomic principles.
Power Station: Robust hydraulic power with a maximum system pressure of up to 140 bar.
Technical Parameters:
| Welding Range O.D. | 630-1000 MM | Welding Range Inch | 24''-42''IPS |
| Power Supply |
380V ±10%, 50/60HZ |
TEMPERATURE RANGE |
MAX. 280 °C |
|
HEATER POWER |
17.5 KW |
PACKING DIMENSION |
2550*1850*1800 MM |
|
TRIMMER POWER |
3.0 KW |
1600*1150*1900 MM |
|
|
PUMP POWER |
2.2 KW |
800*350*400 MM |
|
|
WORKING PRESSURE RANGE |
0 - 140 BAR |
GROSS WEIGHT |
2318 KGS |
Welding Materials and Types:

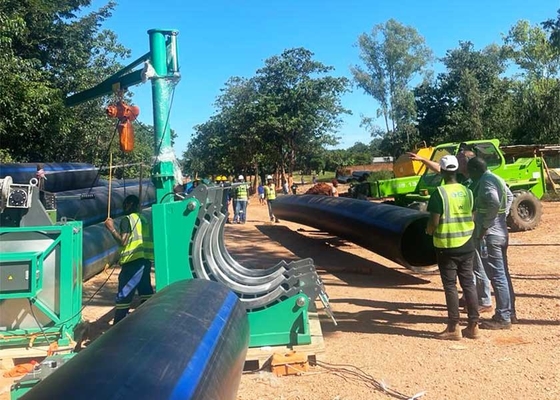

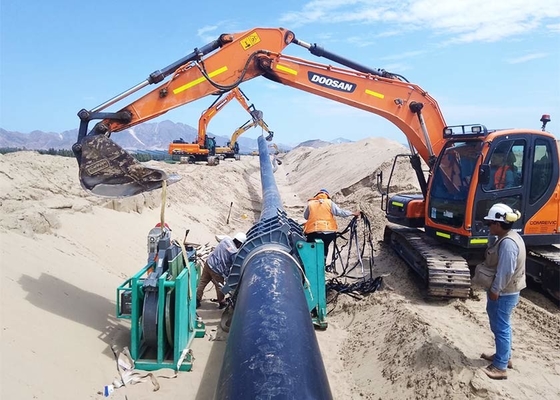

High-quality butt fusion welding machines are designed for welding HDPE, PP, PPH, PVDF, and PPR pipes across various industries, including water supply, irrigation, drainage, gas, water treatment, mining, and chemical plants.
Application:
Advantages:
These thermofusion welding machines are manufactured in strict compliance with the ISO 12176 standard and comply with the DVS 2207 welding standard. Additionally, they offer customization options to meet the ISO 21307 and ASTM F2620 high-force standards
