| モデル: | SWT-V800/500H | 電源: | 380V ±10%,50/60Hz |
|---|---|---|---|
| 温度の表示: | マックス. 280 °C | 圧力範囲: | 0-120Bar |
| 任意サイズ: | 500-800mm | 溶接材料: | PP PE PPH PVDF PPR |
| ポンプパワー: | 2.2kw | 製造基準: | ISO12176 |
| 溶接の標準: | DVS 2207 と ISO 21307 | パッケージの総重量: | 1290KGS |
| ハイライト: | ISO12176 Pipe Fusion Welding Equipment,2.2Kw Pipe Fusion Welding Equipment,HDPE Pipe Fusion Welding Equipment |
||
Overview:

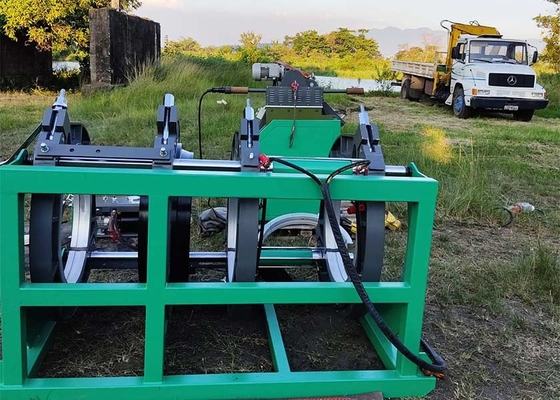

HDPE Butt Fusion Welding Machines, which usually used to weld thermoplastic pipes like PP and PE, consists of three parts:
Machine Chasis: The intergral frame features a quick and detachable structure, facilitating rapid maintenance and repair.
Heating Plate & Trimmer: Ergonomic operation handle designed in accordance with ergonomic principles.
Power Station: Robust hydraulic power with a maximum system pressure of up to 120 bar.
Technical Parameters:
| Welding Range O.D. |
(400*) 500 - 800MM |
Welding Range Inch | 24''-32''IPS |
| Power Supply | 380V ±10%, 50/60HZ | TEMPERATURE RANGE | MAX. 280 °C |
| HEATER POWER | 12.5 KW | PACKING DIMENSION |
2200*1420*1440 MM |
| TRIMMER POWER | 2.2 KW |
2200*1420*1440 MM |
|
| PUMP POWER | 2.2 KW |
800*350*400 MM |
|
| WORKING PRESSURE RANGE | 0 - 160 BAR | GROSS WEIGHT | 1290 KGS |
Welding Materials and Types:
High-quality butt fusion welding machines are designed for welding HDPE, PP, PPH, PVDF, and PPR pipes across various industries, including water supply, irrigation, drainage, gas, water treatment, mining, and chemical plants.
Application:
Advantages:
These thermofusion welding machines are manufactured in strict compliance with the ISO 12176 standard and comply with the DVS 2207 welding standard. Additionally, they offer customization options to meet the ISO 21307 and ASTM F2620 high-force standards
1. The circuit breaker works with electricity leakage protection switch.
2. Bigger load capacity solid relays, longer service life.
3. Cartridge valve, making the layout of the oil block simpler.
4. Accumulator: keep the pressure stable for welding procedure.
5. Safety valve mounted on the side of the hydraulic block.
6. Using integral shaft instead of assembled shaft.
7.STUCCHI quick coupling; Oil seal kit (Glyd Ring type) origin from Germany and Japan, ensure long service life and reduce the risk of oil leakage
8. Brass iron meets iron, more soft than iron, longer service life.
9. Dupont Teflon-coating heating plate, and the temperature deviation on the surface is within 2℃.
10. Non-fan and sufficient power motor.
Certification:
CE & ISO certificates
After-Sales Service:
1. 7*24h online technical support.
2. Machines Quality Warranty: 24 months. If any main parts are broken or can not work under normal operating, we will provide them for free.
