商品の詳細:
お支払配送条件:
|
| 色: | 緑色 | 結合直径: | 280mmから500mm |
|---|---|---|---|
| パッケージ: | 複合木 の カートン | モデルNO: | 試験試験試験用 試験試験用 |
| ポイント: | バット・フュージョン・マシン | 保証: | 24ヶ月 |
| 訓練: | 無料 の オンライン 訓練 | 出荷方法: | 海/空/陸/急便 |
| 支払条件: | T/Tのinadvance | 溶接材料: | PE PP PPH PVDF |
| ハイライト: | HDPE Pipe Butt Fusion Welder,ISO12176 Butt Fusion Welder |
||
Overview:
HDPE Butt Fusion Welding Machines, which usually used to weld thermoplastic pipes like PP and PE, consists of three parts:

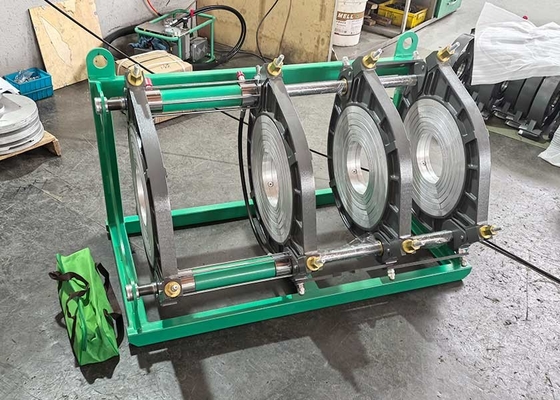

Machine Chasis: The intergral frame features a quick and detachable structure, facilitating rapid maintenance and repair.
Heating Plate & Trimmer: Ergonomic operation handle designed in accordance with ergonomic principles.
Power Station: Robust hydraulic power with a maximum system pressure of up to 120 bar.
Technical Parameters:
| Welding Range O.D. |
200 - 500 MM |
Welding Range Inch | 8''-20''IPS |
| Power Supply | 380V ±10%, 50/60HZ | TEMPERATURE RANGE | MAX. 280 °C |
| HEATER POWER | 7.3 KW | PACKING DIMENSION |
1580*1000*960 MM |
| TRIMMER POWER | 1.5 KW |
1030*680*1200 MM |
|
| PUMP POWER | 1.5 KW |
800*350*400 MM |
|
| WORKING PRESSURE RANGE | 0 - 120 BAR | GROSS WEIGHT | 3295 KGS |
Welding Materials and Types:

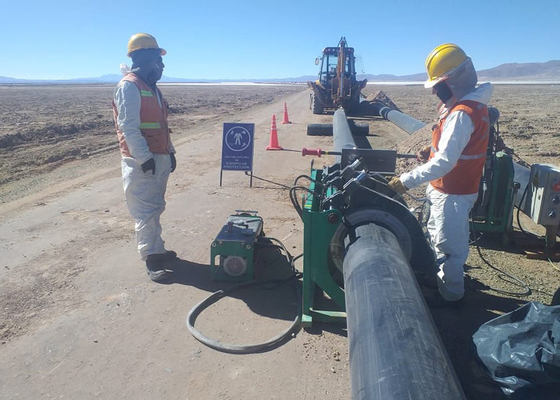

High-quality butt fusion welding machines are designed for welding HDPE, PP, PPH, PVDF, and PPR pipes across various industries, including water supply, irrigation, drainage, gas, water treatment, mining, and chemical plants.
Application:
Advantages:
These thermofusion welding machines are manufactured in strict compliance with the ISO 12176 standard and comply with the DVS 2207 welding standard. Additionally, they offer customization options to meet the ISO 21307 and ASTM F2620 high-force standards
1. The circuit breaker works with electricity leakage protection switch.
2. Bigger load capacity solid relays, longer service life.
3. Cartridge valve, making the layout of the oil block simpler.
4. Accumulator: keep the pressure stable for welding procedure.
5. Safety valve mounted on the side of the hydraulic block.
6. Using integral shaft instead of assembled shaft.
7.STUCCHI quick coupling; Oil seal kit (Glyd Ring type) origin from Germany and Japan, ensure long service life and reduce the risk of oil leakage
8. Brass iron meets iron, more soft than iron, longer service life.
9. Dupont Teflon-coating heating plate, and the temperature deviation on the surface is within 2℃.
10. Non-fan and sufficient power motor.
Certification:
CE & ISO certificates
After-Sales Service:
1. 7*24h online technical support.
2. Machines Quality Warranty: 24 months. If any main parts are broken or can not work under normal operating, we will provide them for free.
