商品の詳細:
お支払配送条件:
|
| モデル: | 検知庁は,この規則を適用する. | 溶接範囲 O.D. (mm) レーザー: | 90~315mm |
|---|---|---|---|
| 適用可能な材料: | HDPE,PP,PVDFその他の熱プラスチック材料 | 電源: | 220V 50/60Hz |
| 評価される力（KW）: | 5.25kw | ピストン面積 ((cm2): | 20.02 |
| 出産国: | 中国 | 液体オイル: | #46 シェルテルスT46 推奨 |
| 保証: | 24ヶ月 | 温度範囲: | 最大320 °C |
| ハイライト: | Irrigation hydraulic butt welding machine,High-Performance Butt Fusion Welding Machine,Water Supply Butt Fusion Welding Machine |
||
Overview:
HDPE Butt Fusion Welding Machines, which usually used to weld thermoplastic pipes like PP and PE, consists of three parts:
Machine Chasis: The intergral frame features a quick and detachable structure, facilitating rapid maintenance and repair.
Heating Plate & Trimmer: Ergonomic operation handle designed in accordance with ergonomic principles.
Power Station: Robust hydraulic power with a maximum system pressure of up to 80 bar.
Technical Parameters:
| Welding Range O.D. | 90-315 MM | Welding Range Inch | 3''-12''IPS |
| Power Supply |
220V ±10%, 50/60HZ |
TEMPERATURE RANGE | MAX. 280 °C |
| HEATER POWER | 3.0 KW | PACKING DIMENSION |
930*620*630 MM |
| TRIMMER POWER | 1.5 KW |
630*600*730 MM |
|
| PUMP POWER | 1.1 KW |
650*340*380 MM |
|
| WORKING PRESSURE RANGE | 0 - 80 BAR | GROSS WEIGHT | 241 KGS |
Welding Materials and Types:
High-quality butt fusion welding machines are designed for welding HDPE, PP, PPH, PVDF, and PPR pipes across various industries, including water supply, irrigation, drainage, gas, water treatment, mining, and chemical plants.

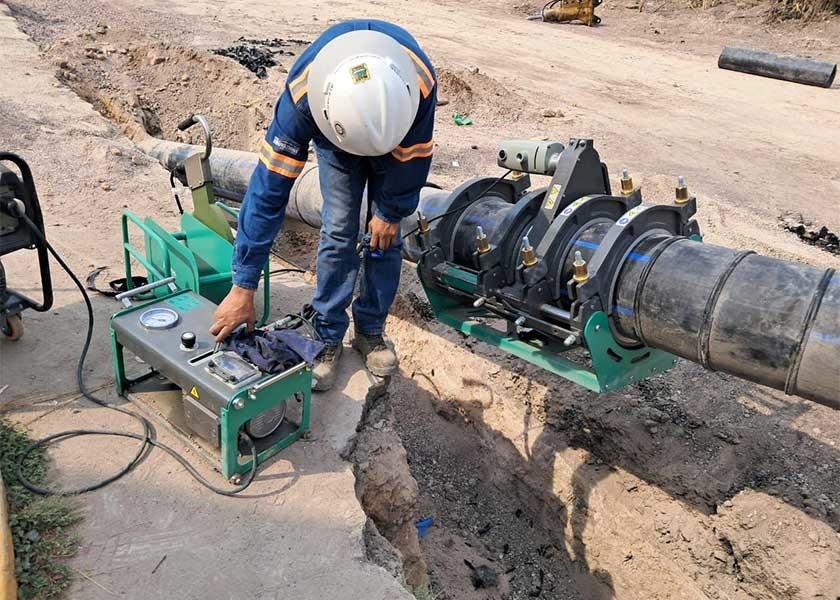

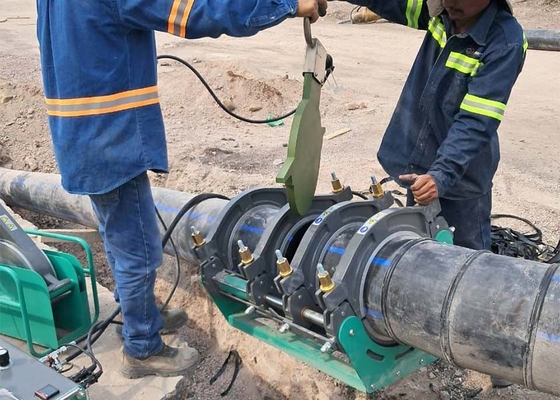

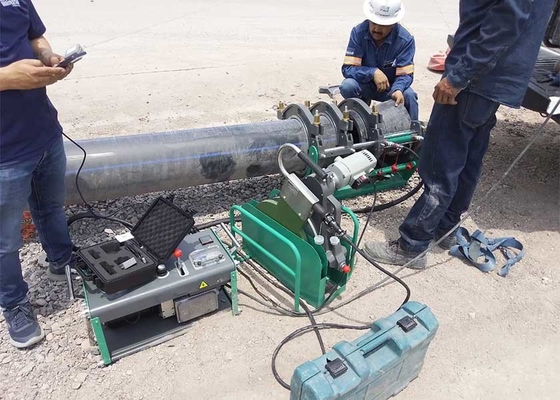

Application:
Advantages:
These thermofusion welding machines are manufactured in strict compliance with the ISO 12176 standard and comply with the DVS 2207 welding standard. Additionally, they offer customization options to meet the ISO 21307 and ASTM F2620 high-force standards
1. The circuit breaker works with electricity leakage protection switch.
2. Bigger load capacity solid relays, longer service life.
3. Cartridge valve, making the layout of the oil block simpler.
4. Accumulator: keep the pressure stable for welding procedure.
5. Safety valve mounted on the side of the hydraulic block.
6. Using integral shaft instead of assembled shaft.
7.STUCCHI quick coupling; Oil seal kit (Glyd Ring type) origin from Germany and Japan, ensure long service life and reduce the risk of oil leakage
8. Brass iron meets iron, more soft than iron, longer service life.
9. Dupont Teflon-coating heating plate, and the temperature deviation on the surface is within 2℃.
10. Non-fan and sufficient power motor.
11. Worm-Gear Driven Makita Motor Milling Cutter.
Certification:
CE & ISO certificates
After-Sales Service:
1. 7*24h online technical support.
2. Machines Quality Warranty: 24 months. If any main parts are broken or can not work under normal operating, we will provide them for free.
