商品の詳細:
お支払配送条件:
|
| 製品名: | シートバック・フュージョン・ウェルディング・マシン | 電圧: | 380V |
|---|---|---|---|
| 頻度: | 50/60Hz | 段階: | 3P |
| 溶接の厚さ: | 3-50のmm | 最高の働く長さ: | 6000mm |
| 溶接材料: | PP、HDPE、PVC、PVDF | 関数: | 2枚による水平溶接、円形溶接、90°垂直溶接 |
| 証明書: | CE | 応用: | 消防車、プール、廃水処理など |
| ハイライト: | 6M plastic sheet welder for tanks,UV-resistant HDPE sheet welder,plastic tank fabrication welding machine |
||

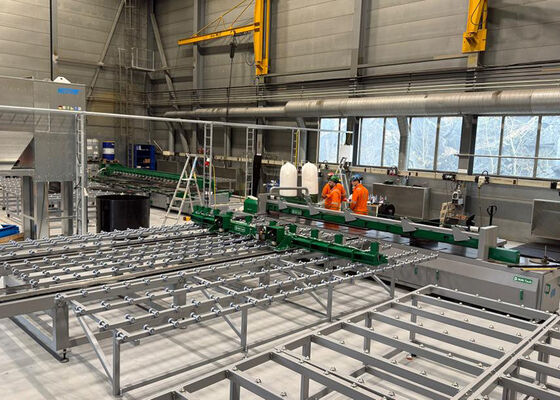

6M Plastic Sheet Butt Welder Market Sector
Fire Trucks, Salmon Farming, Acquaculture, Electroplating equipment, environmental protection equipment, chemical containers, sewage treatment, etc
6M Plastic Sheet Butt Welder Specification:
| Model | SWT-PH6000 |
| Weldable sheet thickness(mm) | 3.0-50.0 |
| Max working length(mm) | 6000 |
| Roll circle diameter minimum(mm) | 600 |
| Air pressure(kg.f/cm²) | 6.0-8.0 |
| Energy source(m³/min) | 0.0032 |
| Rated voltage(V) | 380V |
| Rated current(A) | 23A |
| Heating Power(kW) | 11kW |
| Rolling Motor Power(kW) | 3kW |
6M Plastic Sheet Butt Welder Features:
6M Plastic Sheet Butt Welder Application:
After-Sales Service:
We can provide free training service to our customers at our factory.
We can also provide on-site training to our customers on their request. The accomodation fees will be borne by them.
